Outdoor Camera

Model CS-C8C (1080P)

Camera

Image Sensor 1/2.7″ Progressive Scan CMOS

Shutter Speed Self-adaptive shutter

Lens 4mm @ F1.6, view angle: 87° (Horizontal), 105° (Diagonal) 6mm @ F1.6, view angle:55° (Horizontal), 66° (Diagonal)

PT Angle Pan: 352°, Tilt: 95°

Minimum Illumination 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR

Lens Mount M12

Day & Night IR-cut filter with auto-switching

DNR 3D DNR

WDR Digital WDR

BLC Supports

Black & White Night 30 m / 100 ft.

Video & Audio

Max. Resolution 1920 × 1080

Frame Rate Max:30 fps; Self-Adaptive during network transmission

Video Compression H.265 / H.264

Video Bit Rate Full HD; Hi-Def; Standard. Adaptive bit rate.

Audio Bit Rate Self-Adaptive

Max. Bitrate 2 Mbps

Network

Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n

Frequency Range 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth Supports 20 MHz

Security 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK

Transmission Rate 11b: 11Mbps, 11g : 54Mbps, 11n: 72Mbps

Wi-Fi Pairing AP pairing

Protocol EZVIZ cloud proprietary protocol

Interface Protocol EZVIZ cloud proprietary protocol

Wired Network RJ45 × 1 (10 M / 100 M Adaptive Ethernet Port)

Storage

Local Storage MicroSD card slot (Max. 256G)

Cloud Storage EZVIZ Cloud Storage

Function

Smart Alarm AI Person Detection

Customized Alert Area Supports

Audio Supports mic

General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

General

Operating Conditions -30°C ~ 60°C (14°F to 113 °F), Humidity 95% or less (non-condensing)

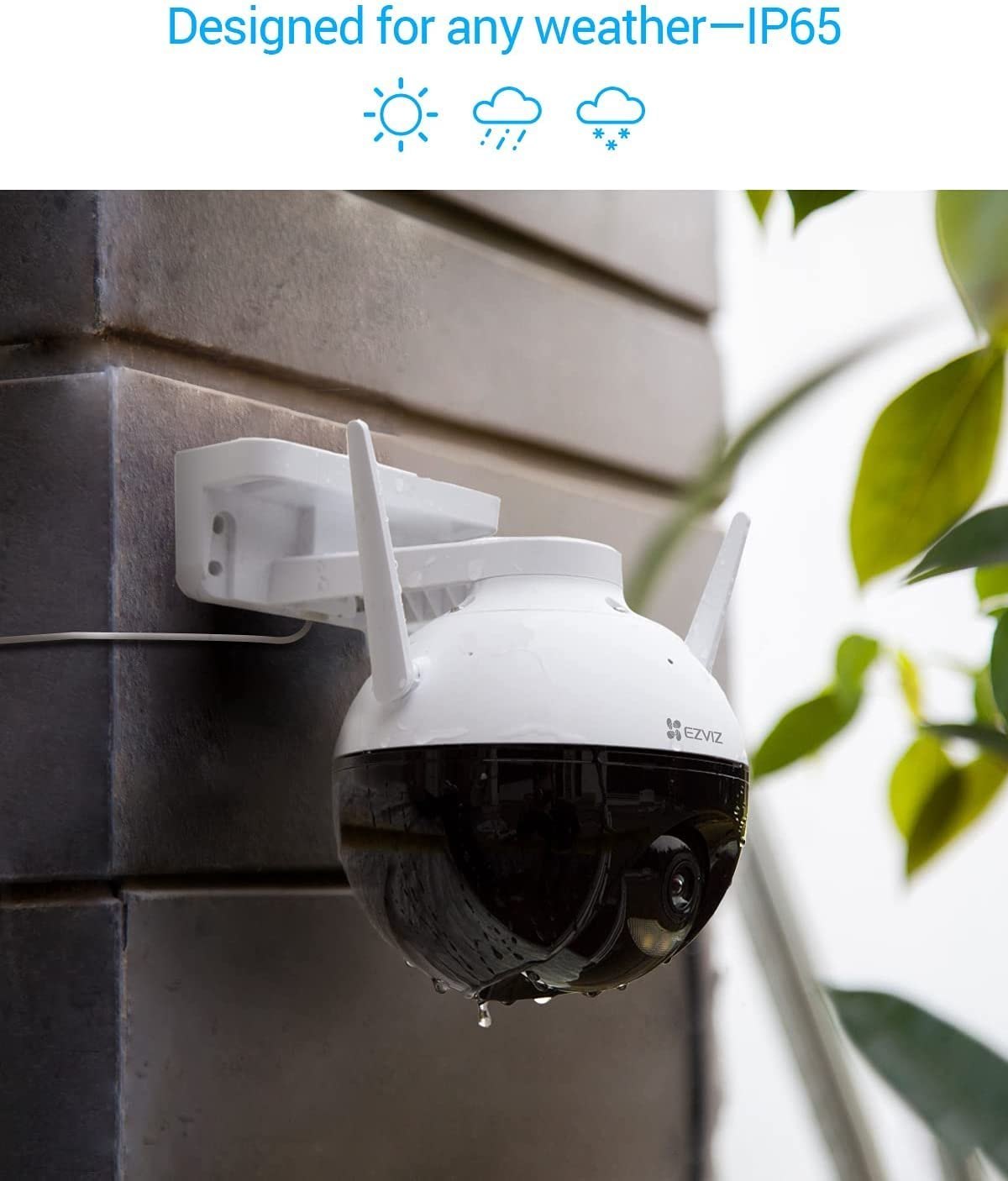

IP Grade IP65

Power Supply DC 12V / 1A

Power Consumption MAX. 6W

Dimensions 158 x 157 x 149 mm (6.22 x 6.18 x 5.87 inch)

Packaging Dimensions 197 x 185 x 205 mm (7.76 x 7.28 x 8.07 inch)

Weight 885 g (31.22 oz)

Net Weight 510 g (17.99 oz)
